Features:

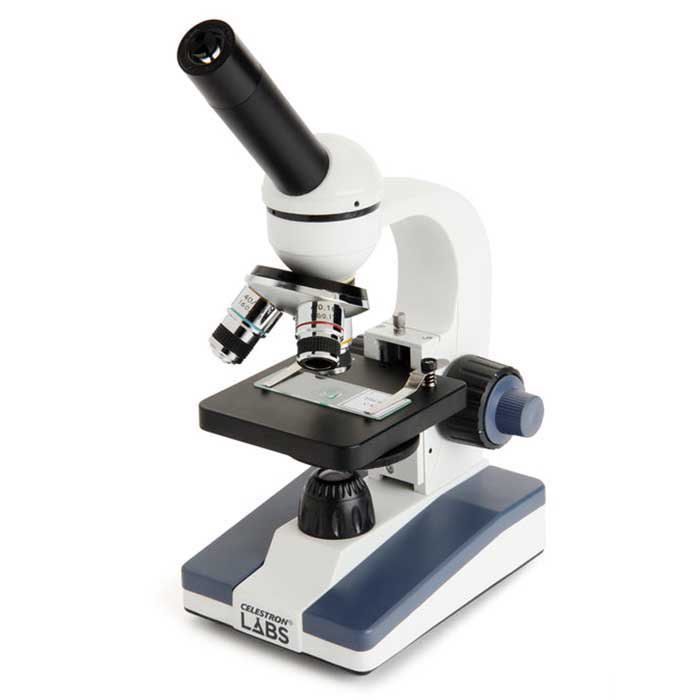

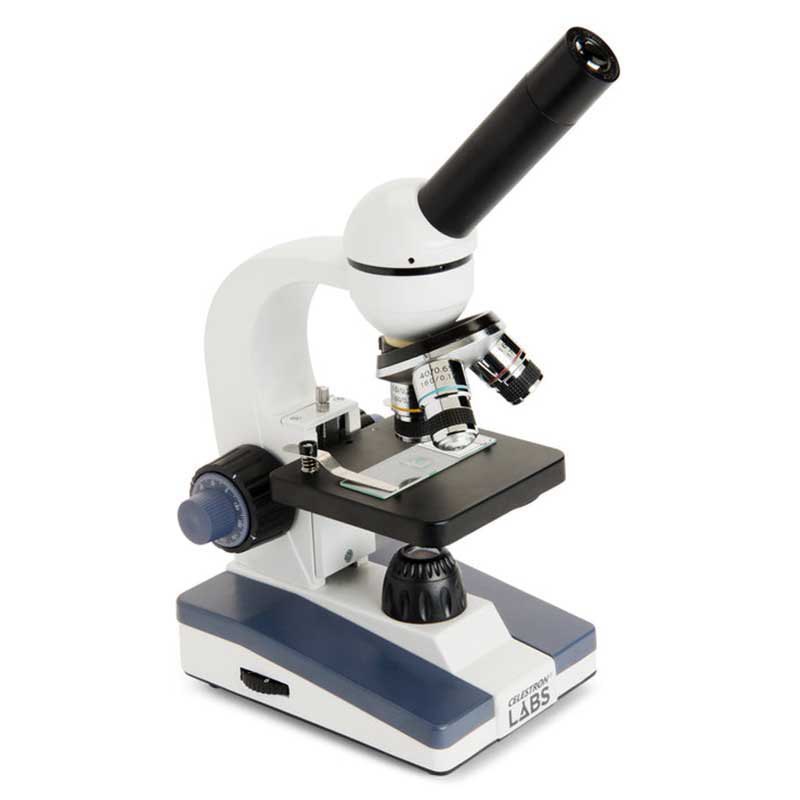

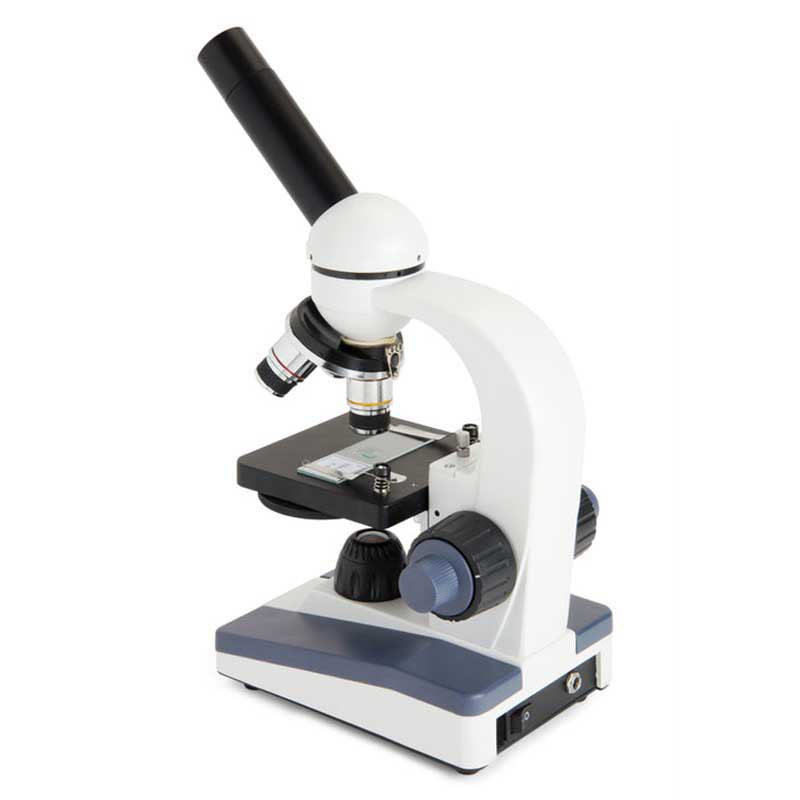

- Lab-ready compound microscope rotatable monocular head
- 4x, 10x and 40x objective lenses
- Coaxial, coarse and fine focus
- 10x eyepiece allows you to view specimens at 40x, 100x, 400x magnification
- Built-in, adjustable lower LED illumination
- 3 AA batteries included for field use
- 10 prepared slides included
Specifications:
General:
- Type of Microscope: Stereo

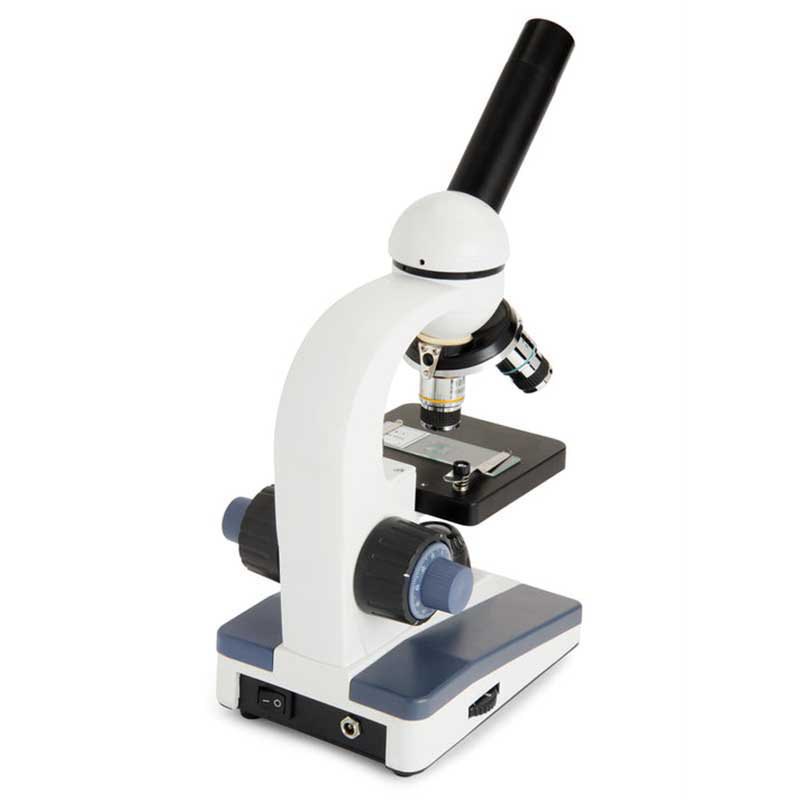

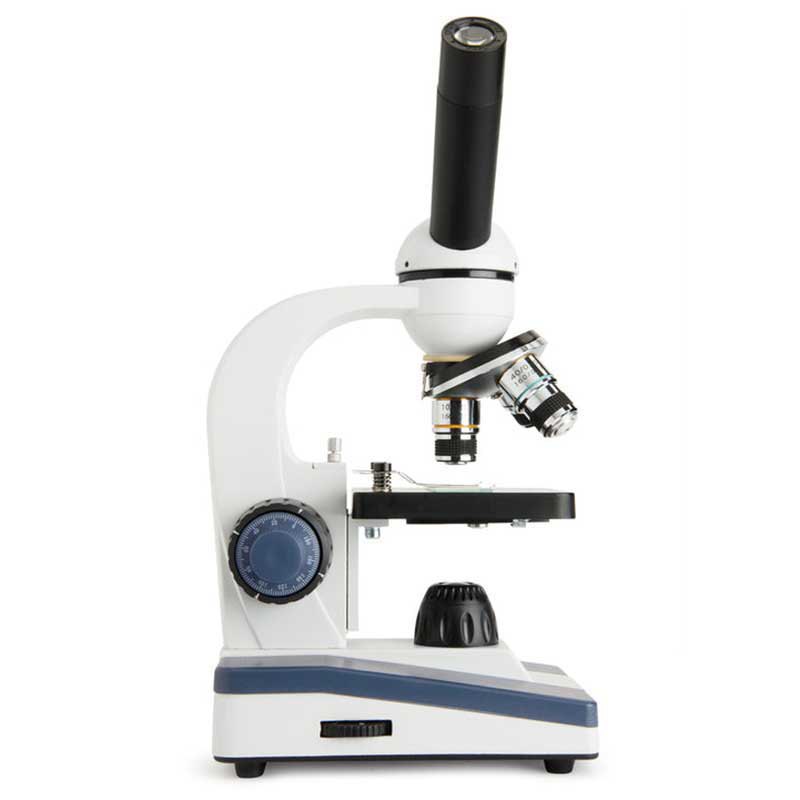

- Head: 360° rotatable monocular with 45° incline
- Eyepiece(s) Magnification: (1) WF 10x
- Eyepiece(s) Diameter: 23.2mm (0.91´´)
- Nosepiece: triple, rotational
- Objective(s) Type: Refractive
- Objective(s) Standard: JIS

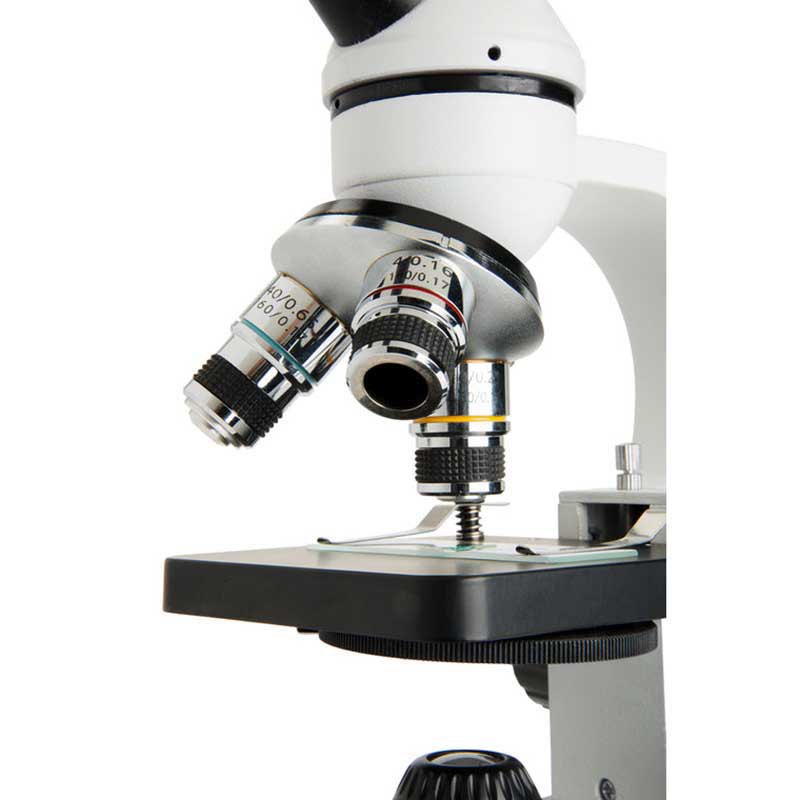

- Objective(s) Magnification: (3) 4x/10x/40x, all achromatic
- Objective(s) Thread: WJ4/5´´ x 1/36´´

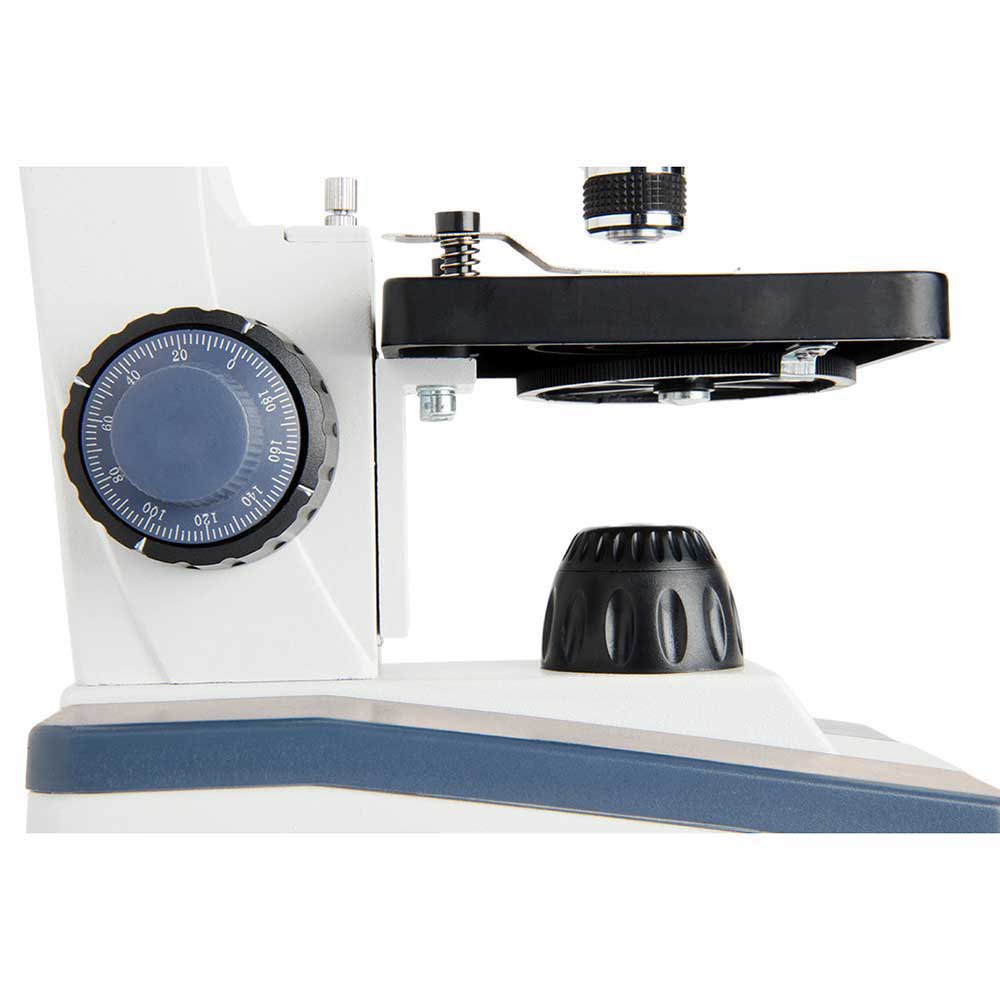

- Focus Type(s): Coaxial coarse and fine focus
- Focus Travel (per rotation): 0.1mm (.004´´)
- Magnification Range: 40x to 400x (40x, 100x, 400x)
- Illumination Type: LED
- Illumination Position(s): Lower
- Illumination Adjustability Mechanism: Dial
- Power Source: AC Adapter- 100-240V
- Battery Option: (3) AA (Included)

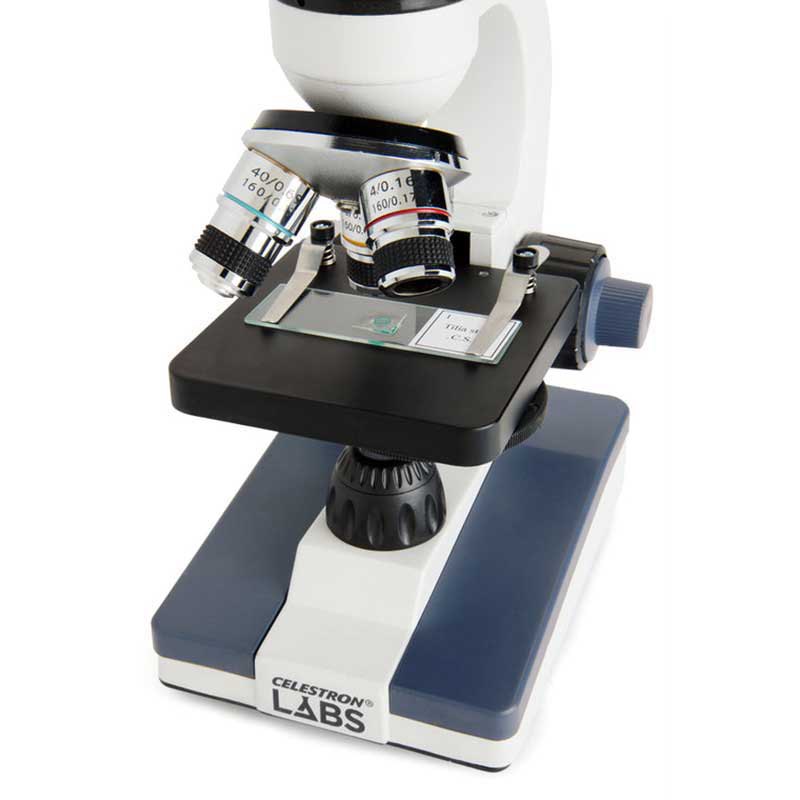

- Stage: Plain stage with metal clips 88mm x 88mm (3.46´´ x 3.46´´)
- Condenser N.A.: 1.25
- Stage Diaphragm: Disc diaphragm with 6 aperture sizes

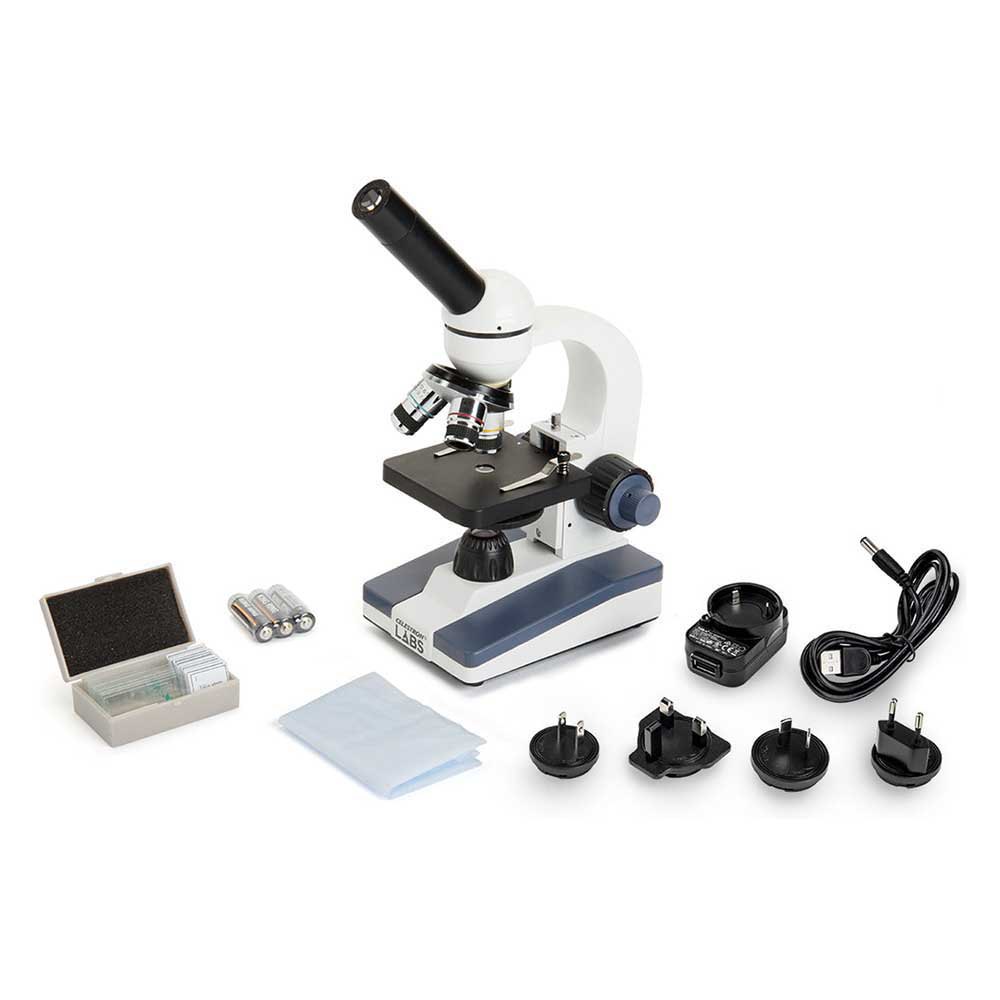

Included Items:
- 10x WF eyepiece
- Universal AC Adapter- 100-240V; plugs A, C, G, and I
- Power adapter cord
- 10 prepared slides
- 3 AA batteries
|
|
|
