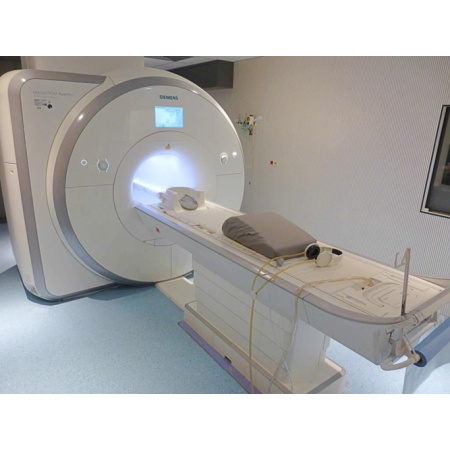

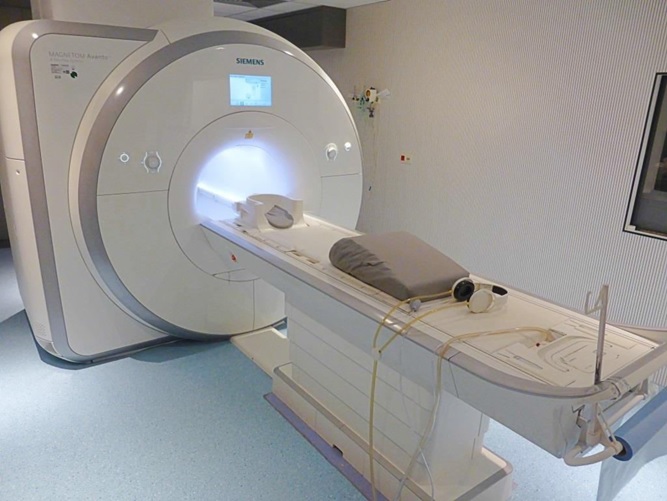

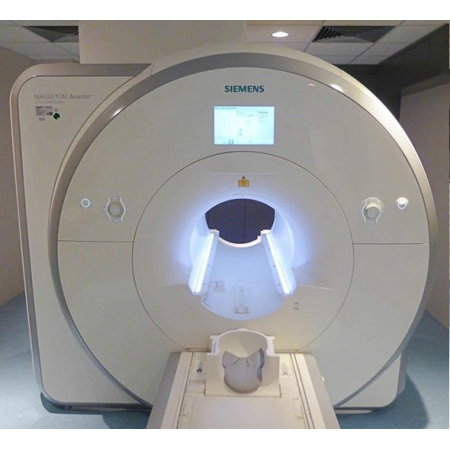

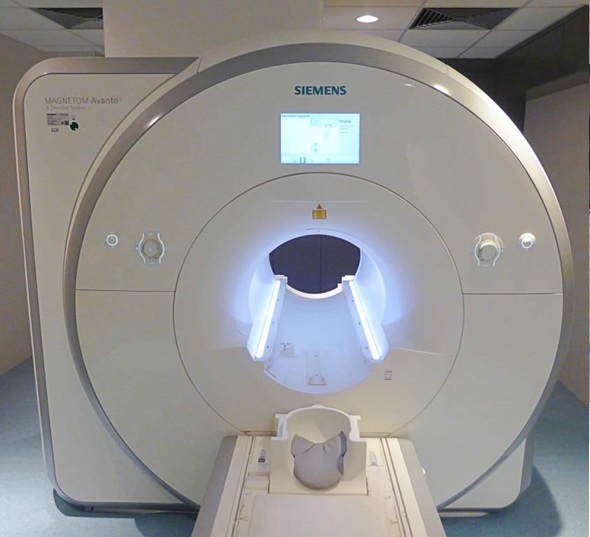

MRI System Core
- Siemens Avanto Fit 1.5T magnet with Zero Helium boil-off technology
- Maximum gradient strength: 33 mT/m
- Slew rate: 125 T/m/s

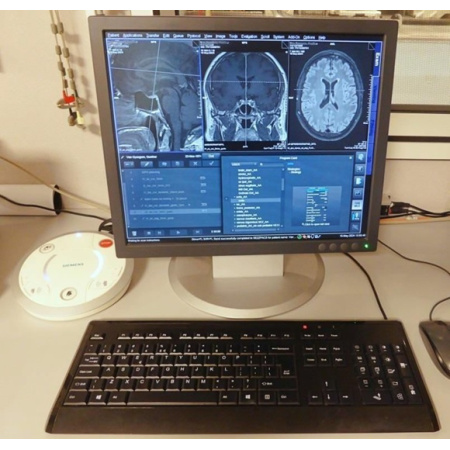

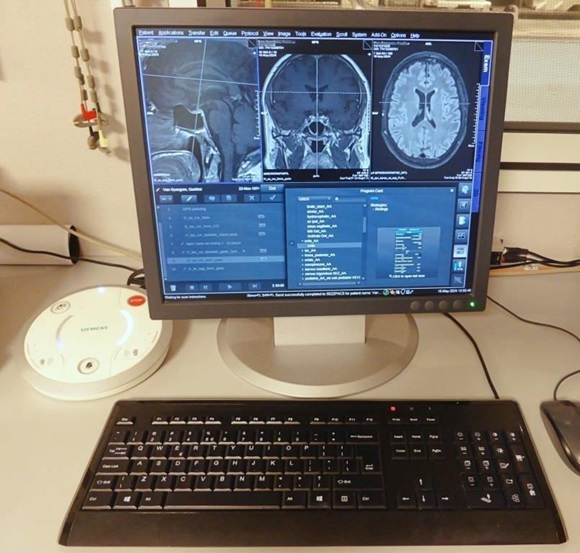

- Operating software: syngo MR B17
- Power consumption: 35 kVA typical
Clinical Performance
- Scan times reduced by up to 50% with iPAT2
- Spatial resolution: up to 0.2 mm
- FOV: up to 500 mm
- SNR improvement: up to 30% compared to standard Avanto
- Matrix size: up to 1024 x 1024
Patient Experience & Safety
- 60 cm bore diameter

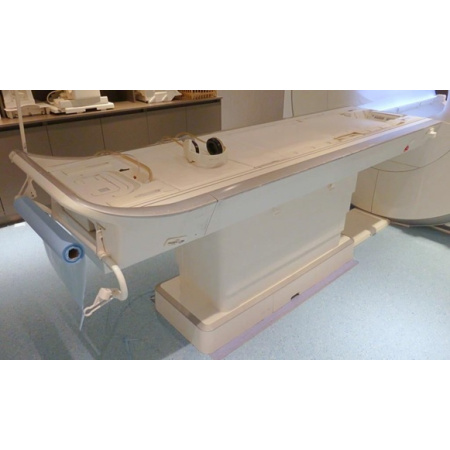

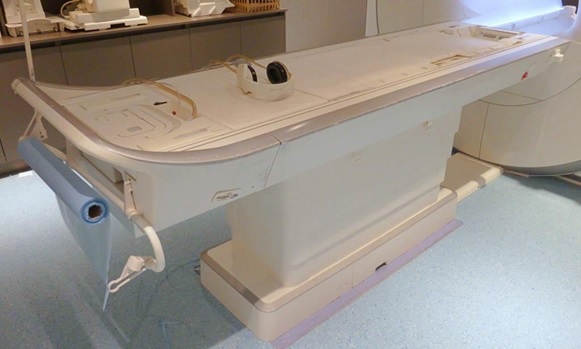

- Table capacity: 200 kg (440 lbs)
- Advanced ventilation system: 0.3 m/s airflow
- Ambient lighting with selectable colors
- Ultra-low helium consumption: <0.05L/hr
RF Technology & Coils
- Tim 4G technology with up to 204 coil elements
- 18-channel body coil
- 20-channel head/neck coil
- 16-channel spine coil
- DirectConnect™ technology for zero signal loss
- Dual-mode coil operation

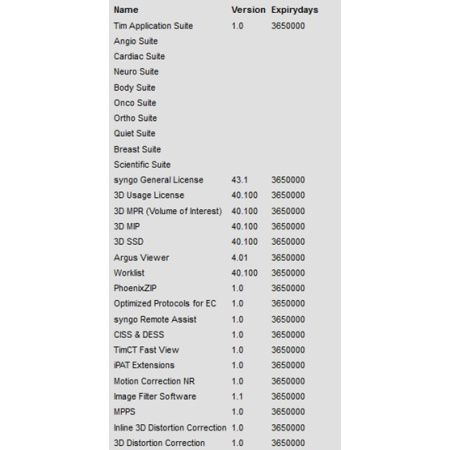

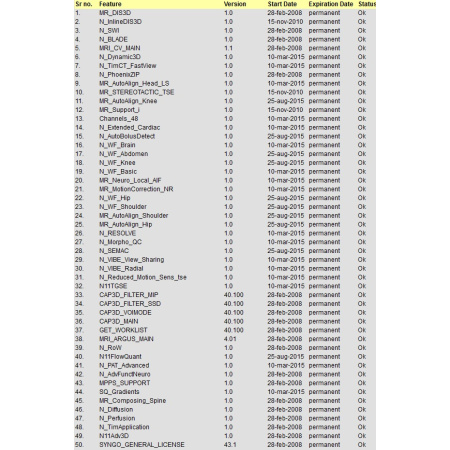

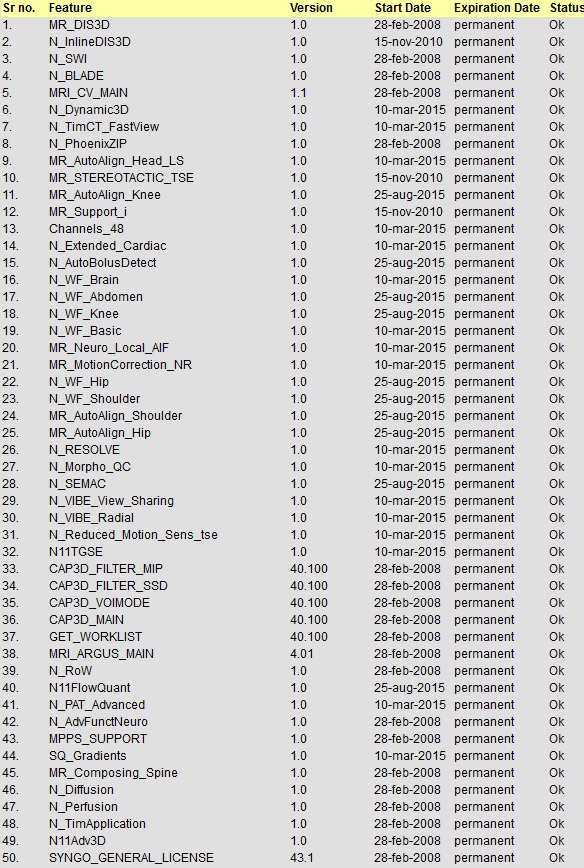

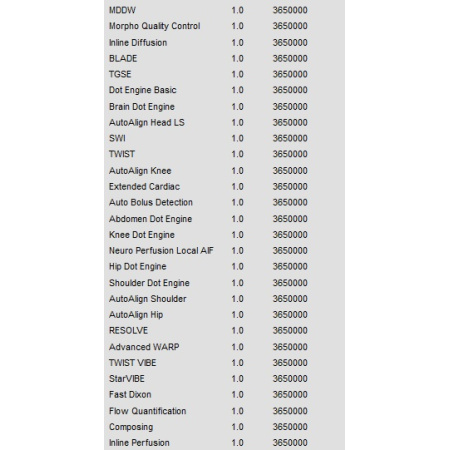

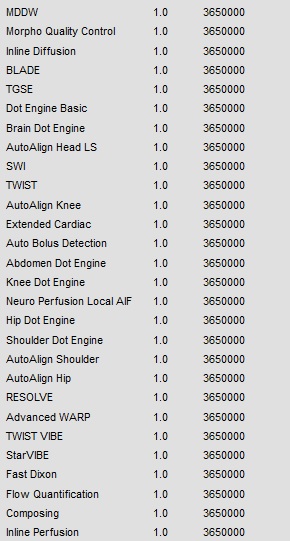

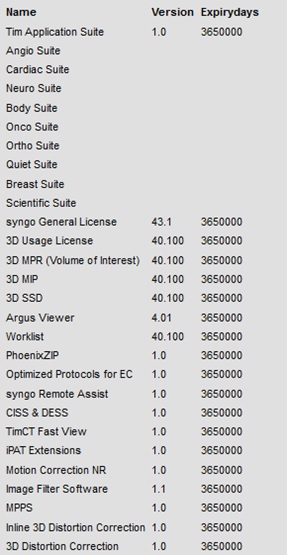

Clinical Applications & Software
- Dot automation workflow engine
- Advanced cardiac package with real-time imaging
- Neuro 3D evaluation suite
- Advanced diffusion package with RESOLVE
- Susceptibility weighted imaging (SWI)
- MR angiography with NATIVE
- Orthopedic protocols with composing
Installation Requirements
- Room size minimum: 30 m²
- RF shielding: 100 dB attenuation
- Operating temperature: 18-22°C
- Humidity control: 40-60%
- Power supply: 3-phase, 400V/50Hz
- Magnetic field containment: 0.5 mT line typically within 4m
Service & Support
- Remote diagnostic capability
- 24/7 technical support
- Preventive maintenance schedule
- System uptime guarantee: >99%
- Parts availability: 10 years
- Software upgrades available
- Training programs included
